This tutorial shows you how to perform supervised classification (e.g., Classification and Regression Trees [CART]) in Earth Engine.

Supervised classification algorithms available in Earth Engine

Source: developers.google.com/earth-engine/classifi..

The Classifier package handles supervised classification by traditional ML algorithms running in Earth Engine. These classifiers include CART, RandomForest, NaiveBayes and SVM. The general workflow for classification is:

1. Collect training data. Assemble features which have a property that stores the known class label and properties storing numeric values for the predictors.
2. Instantiate a classifier. Set its parameters if necessary.
3. Train the classifier using the training data.
4. Classify an image or feature collection.
5. Estimate classification error with independent validation data.

The training data is a FeatureCollection with a property storing the class label and properties storing predictor variables. Class labels should be consecutive, integers starting from 0. If necessary, use remap() to convert class values to consecutive integers. The predictors should be numeric.

Requirements

• geemap - A Python package for interactive mapping with Google Earth Engine, ipyleaflet, and ipywidgets

Installation

conda create -n gee python=3.7
conda activate gee
conda install mamba -c conda-forge
mamba install geemap -c conda-forge

Resources

Notebook:

• github.com/giswqs/geemap/blob/master/exampl..

Demo

Video

Step-by-step tutorial

Import libraries

import ee
import geemap

Create an interactive map

Map = geemap.Map()
Map

Add data to the map

point = ee.Geometry.Point([-122.4439, 37.7538])
# point = ee.Geometry.Point([-87.7719, 41.8799])

image = ee.ImageCollection('LANDSAT/LC08/C01/T1_SR') \
    .filterBounds(point) \
    .filterDate('2016-01-01', '2016-12-31') \
    .sort('CLOUD_COVER') \
    .first() \
    .select('B[1-7]')

vis_params = {
    'min': 0,
    'max': 3000,
    'bands': ['B5', 'B4', 'B3']
}

Map.centerObject(point, 8)
Map.addLayer(image, vis_params, "Landsat-8")

Check image properties

ee.Date(image.get('system:time_start')).format('YYYY-MM-dd').getInfo()

image.get('CLOUD_COVER').getInfo()

Make training dataset

There are several ways you can create a region for generating the training dataset.

• Draw a shape (e.g., rectangle) on the map and the use region = Map.user_roi
• Define a geometry, such as region = ee.Geometry.Rectangle([-122.6003, 37.4831, -121.8036, 37.8288])
• Create a buffer zone around a point, such as region = ee.Geometry.Point([-122.4439, 37.7538]).buffer(10000)
• If you don't define a region, it will use the image footprint by default

# region = Map.user_roi
# region = ee.Geometry.Rectangle([-122.6003, 37.4831, -121.8036, 37.8288])
# region = ee.Geometry.Point([-122.4439, 37.7538]).buffer(10000)

In this example, we are going to use the USGS National Land Cover Database (NLCD) to create label dataset for training

nlcd = ee.Image('USGS/NLCD/NLCD2016').select('landcover').clip(image.geometry())
Map.addLayer(nlcd, {}, 'NLCD')
Map

# Make the training dataset.
points = nlcd.sample(**{
    'region': image.geometry(),
    'scale': 30,
    'numPixels': 5000,
    'seed': 0,
    'geometries': True  # Set this to False to ignore geometries
})

Map.addLayer(points, {}, 'training', False)

print(points.size().getInfo())

print(points.first().getInfo())

Train the classifier

# Use these bands for prediction.
bands = ['B1', 'B2', 'B3', 'B4', 'B5', 'B6', 'B7']


# This property of the table stores the land cover labels.
label = 'landcover'

# Overlay the points on the imagery to get training.
training = image.select(bands).sampleRegions(**{
  'collection': points,
  'properties': [label],
  'scale': 30
})

# Train a CART classifier with default parameters.
trained = ee.Classifier.smileCart().train(training, label, bands)

print(training.first().getInfo())

Classify the image

# Classify the image with the same bands used for training.
result = image.select(bands).classify(trained)

# # Display the clusters with random colors.
Map.addLayer(result.randomVisualizer(), {}, 'classfied')
Map

Render categorical map

To render a categorical map, we can set two image properties: landcover_class_values and landcover_class_palette. We can use the same style as the NLCD so that it is easy to compare the two maps.

class_values = nlcd.get('landcover_class_values').getInfo()
class_values

class_palette = nlcd.get('landcover_class_palette').getInfo()
class_palette

landcover = result.set('classification_class_values', class_values)
landcover = landcover.set('classification_class_palette', class_palette)

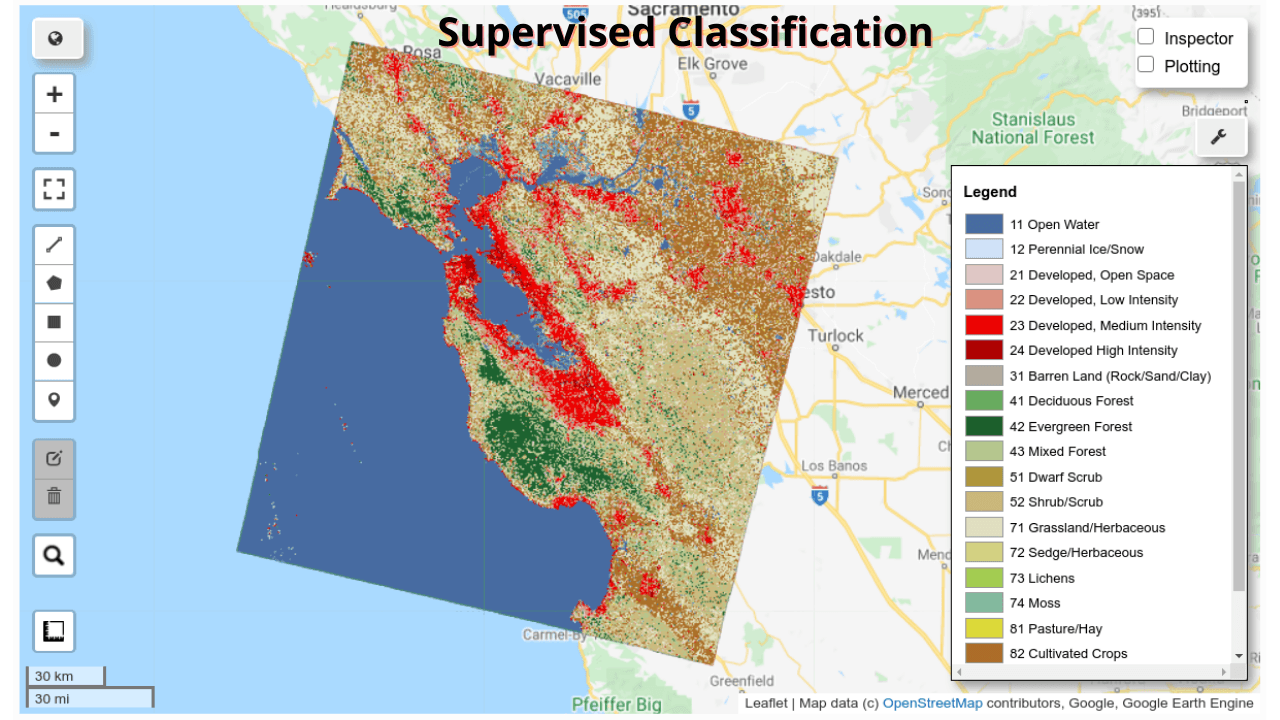

Map.addLayer(landcover, {}, 'Land cover')
Map

Visualize the result

print('Change layer opacity:')
cluster_layer = Map.layers[-1]
cluster_layer.interact(opacity=(0, 1, 0.1))

Add a legend to the map

Map.add_legend(builtin_legend='NLCD')
Map

Export the result

Export the result directly to your computer:

import os
out_dir = os.path.join(os.path.expanduser('~'), 'Downloads')
out_file = os.path.join(out_dir, 'landcover.tif')

geemap.ee_export_image(landcover, filename=out_file, scale=900)

Export the result to Google Drive:

geemap.ee_export_image_to_drive(landcover, description='landcover', folder='export', scale=900)
